Your Strategic Partner in Industrial Equipment Procurement

We provide energy and oil & gas companies with essential equipment, serving as a reliable link between leading global manufacturers and the end user. Our mission is to make the acquisition of complex machinery transparent, fast, and efficient.

CORE SUPPLY LINES

Electrical Equipment

Motor Control Centers (MCC) up to 6300 A, distribution boards, and automation systems from key industry manufacturers.

Hydraulic Systems

Supply of HPU and OPS units for hydraulic drive operations and advanced filtration systems.

Pumping Technologies

A wide range of pumps for extraction and processing—from standard centrifugal units to specialized screw systems.

ELECTRICAL EQUIPMENT

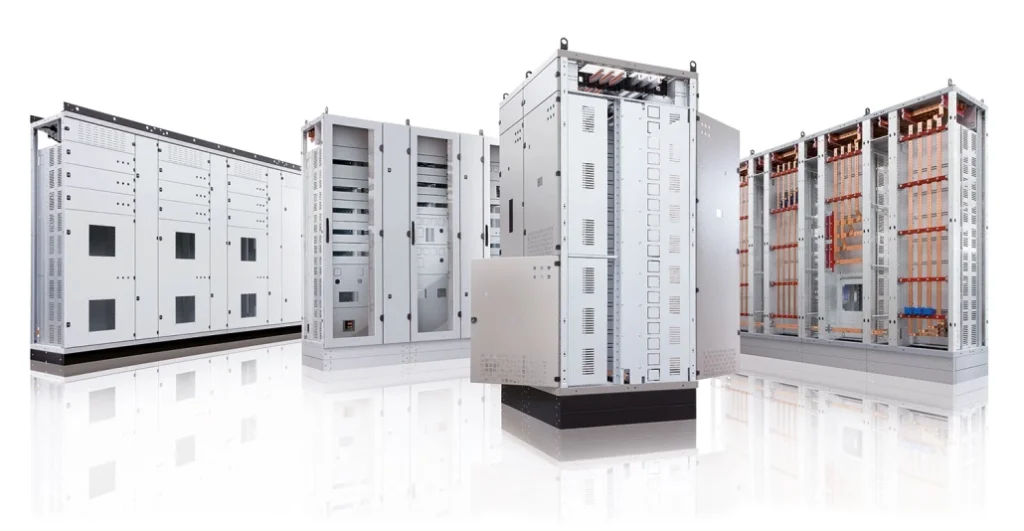

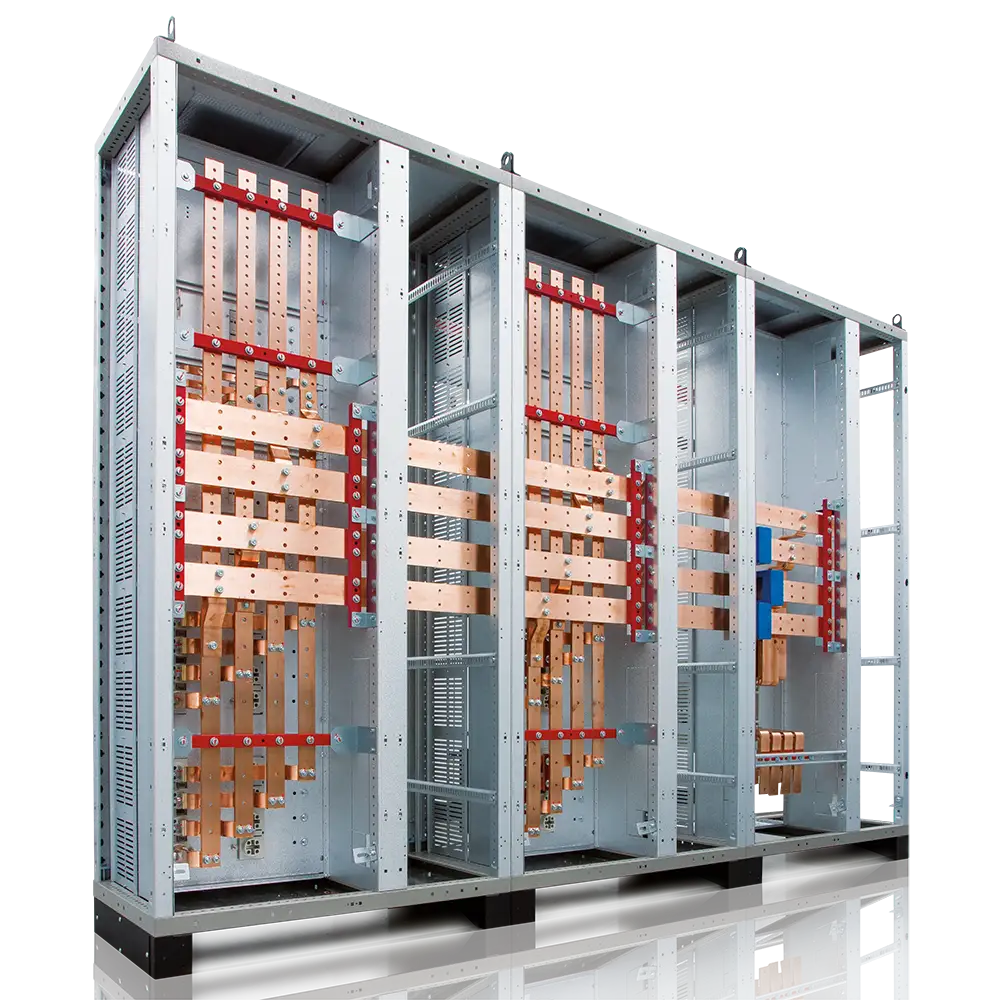

MOTOR CONTROL CENTER (MCC)
SWITCHBOARDS UP TO 6300 A

(IP30–IP55 Protection | Form 1–Form 4 Separation)

Efficient and highly flexible motor control solutions featuring various busbar configurations
(rear, side, or tunnel). Engineered to meet the requirements of a wide range of industrial electrical installations.

Key Features

  • Power: Rated current up to 6300 A.
  • Protection: IP30–IP55 ratings; available with solid or glass door options.
  • Robust Construction: Heavy-duty steel frame (2 mm thickness).
  • Compatibility: Fully compatible with circuit breakers from industry leaders
    (ABB, Schneider Electric, Siemens).
  • Safety & Durability: Certified earthing system and seismic resistance (up to 1.0 g).
  • World-Class Standards: Busbars certified by renowned laboratories (IPH Berlin, CESI Milan).

Design & Configuration

  • Flexible Separation: Configurations from Form 1 to Form 4 for enhanced operational safety.
  • Modularity: Vertical interconnection capability and a wide array of modular accessories.
  • Ready-to-Install: Delivered fully assembled to ensure rapid onsite installation.
  • Customization: Tailor-made panel designs and flexible connection options available upon request.
  • Inox Series: Stainless steel version available for corrosive or high-hygiene environments.

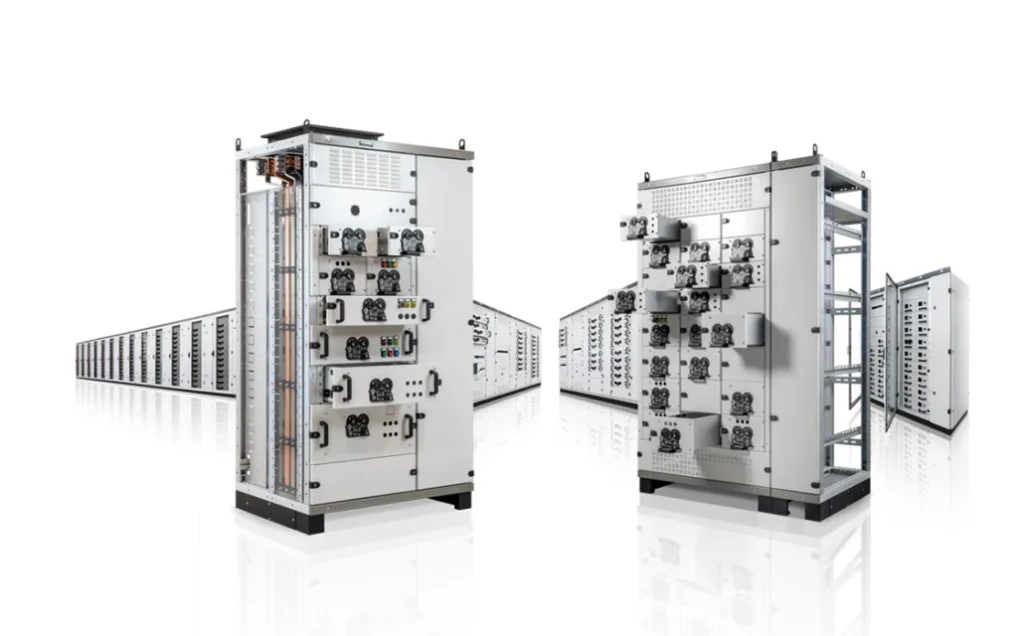

SMART-ENERGY COPPER:
MOTOR CONTROL CENTER (MCC) UP TO 6300 A

(Protection Class IP30–IP55 | Separation Form 3 – Form 4)

SMART-ENERGY COPPER is a high-tech modular system designed for advanced Motor Control Centers.
Offering flexible configuration and compliance with the strictest safety standards, this solution is ideal for critical industrial and power infrastructure projects.

Key Features

  • Capacity: Rated current up to 6300 A.
  • Protection & Design: Enclosure rating up to IP55; internal arc resistance option available.
  • Durable Enclosure: 2 mm thick steel frame with epoxy powder coating (RAL 7035 B).
  • Versatility: Fully compatible with components from industry leaders (ABB, Schneider Electric, Siemens).
  • Safety: Patented earthing system and compliance with high-level internal separation forms.
  • Global Standards: Busbar systems certified by independent laboratories IPH Berlin and CESI Milan.

Design & Configuration

  • Modular Architecture: Vertical section interconnections and flexible configuration tailored to specific project needs.
  • Fast Engineering: Rapid system configuration using specialized Fast-One software.
  • Ready for Installation: Supplied fully prefabricated to significantly reduce on-site installation and commissioning time.
  • Special Versions: Stainless steel (Inox) execution available for operation in harsh or corrosive environments.
  • Custom Design: Panel layouts and electrical diagrams developed according to customer specifications.

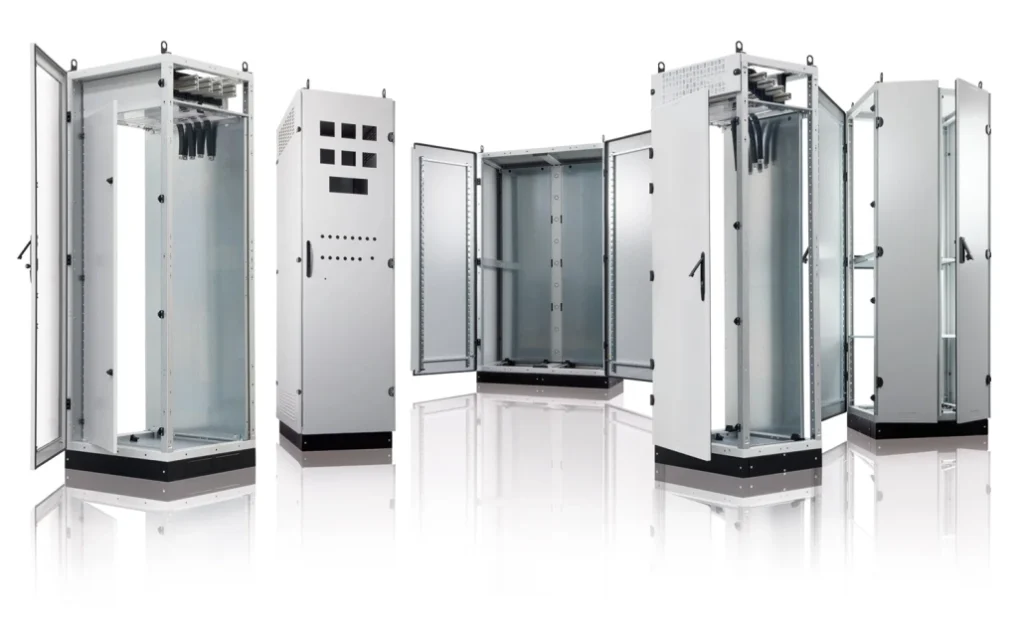

INDUSTRIAL AUTOMATION SWITCHBOARDS
UP TO 4000 A

(Protection Class IP30–IP55 | Internal Separation Form 1 – Form 2)

Reliable and flexible solutions for industrial automation systems up to 4000 A.
These switchboards are optimized for various mounting plate configurations and are fully compatible with both traditional copper busbars and Smart-Energy systems (Basic/Plus).

Key Features

  • Capacity: Rated current up to 4000 A.
  • Protection & Design: Enclosure rating IP30–IP55; available with solid or glass doors.
  • Durable Enclosure: 2 mm thick steel frame with epoxy powder coating (RAL 7035 B), custom colors available on request.
  • Versatility: Full compatibility with circuit breakers from industry leaders (ABB, Schneider Electric, Siemens).
  • Safety: Certified earthing system and confirmed seismic resistance up to 1.0 g.
  • Materials: Inox series (stainless steel) available for harsh and corrosive environments.

Design & Configuration

  • Mounting Flexibility: Front or side mounting plates with a wide range of equipment installation options.
  • System Integration: Full compatibility with PW-Tech, MC-Cub, and ME-Cub systems.
  • Aesthetics & Design: Seamlessly matches the visual style of global manufacturers’ equipment.
  • Fast Engineering: Rapid system calculation and configuration using Fast-One software.
  • Customization: Bespoke drilling and cutouts, along with certified busbar assembly according to Form 2 standards.

HYDRAULIC EQUIPMENT

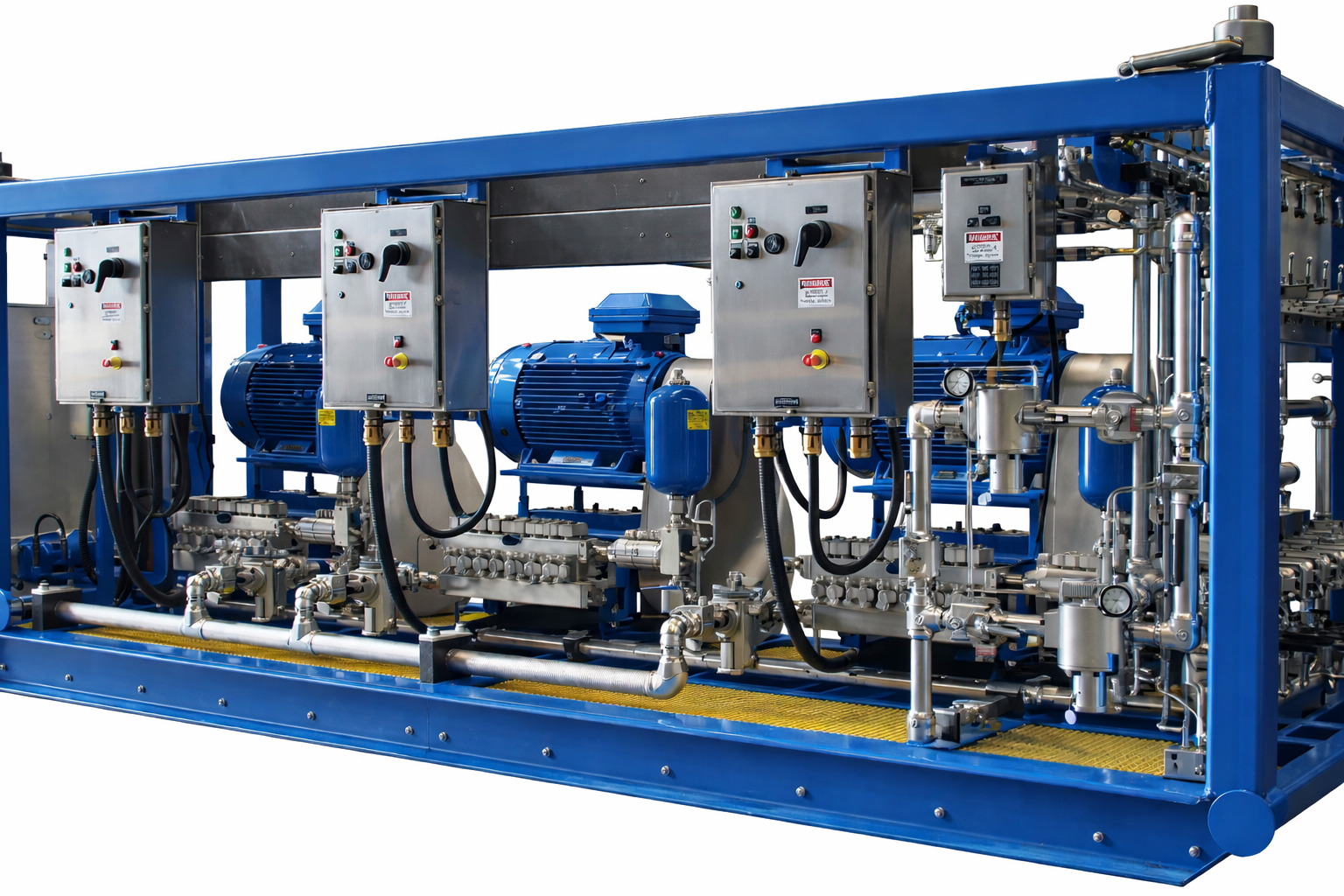

OIL PUMP STATIONS (OPS) / HYDRAULIC POWER UNITS (HPU)

(Fluid Storage, Filtration & Pressure Supply Systems)

OPS/HPU are high-performance hydraulic power units engineered for reliable fluid storage, precision filtration, and consistent pressure supply. The modular design ensures seamless integration into hydraulic circuits, providing stable power for demanding industrial and energy applications.

Key Components

  • Storage Tanks (Return & Supply): A dual-tank system where the return tank collects fluid for conditioning, while the supply tank stores filtered fluid ready for high-pressure delivery.
  • Filling & Conditioning Pump: Designed for safe fluid transfer from original containers and periodic conditioning through integrated filter and valve blocks.
  • Supply Pumps (Electric & Pneumatic): High-efficiency units that boost fluid pressure to required operating levels. Pneumatic pumps can operate in parallel with electric drives to optimize duty cycles.
  • Filtration Systems: Precision filters matched to specific pressure ratings, equipped with clogging indicators and differential pressure transmitters for real-time monitoring.

Technical Advantages

  • Closed-Loop Efficiency: Integrated return and filtration circuits extend component life and reduce fluid degradation.
  • Hybrid Drive Capability: Combined electric and pneumatic pumping solutions for enhanced reliability and energy management.
  • Advanced Monitoring: Continuous tracking of filtration status and system pressure via high-accuracy sensors.
  • Custom Engineering: Tailored configuration of tank volumes, pump capacities, and filtration grades based on specific project requirements.

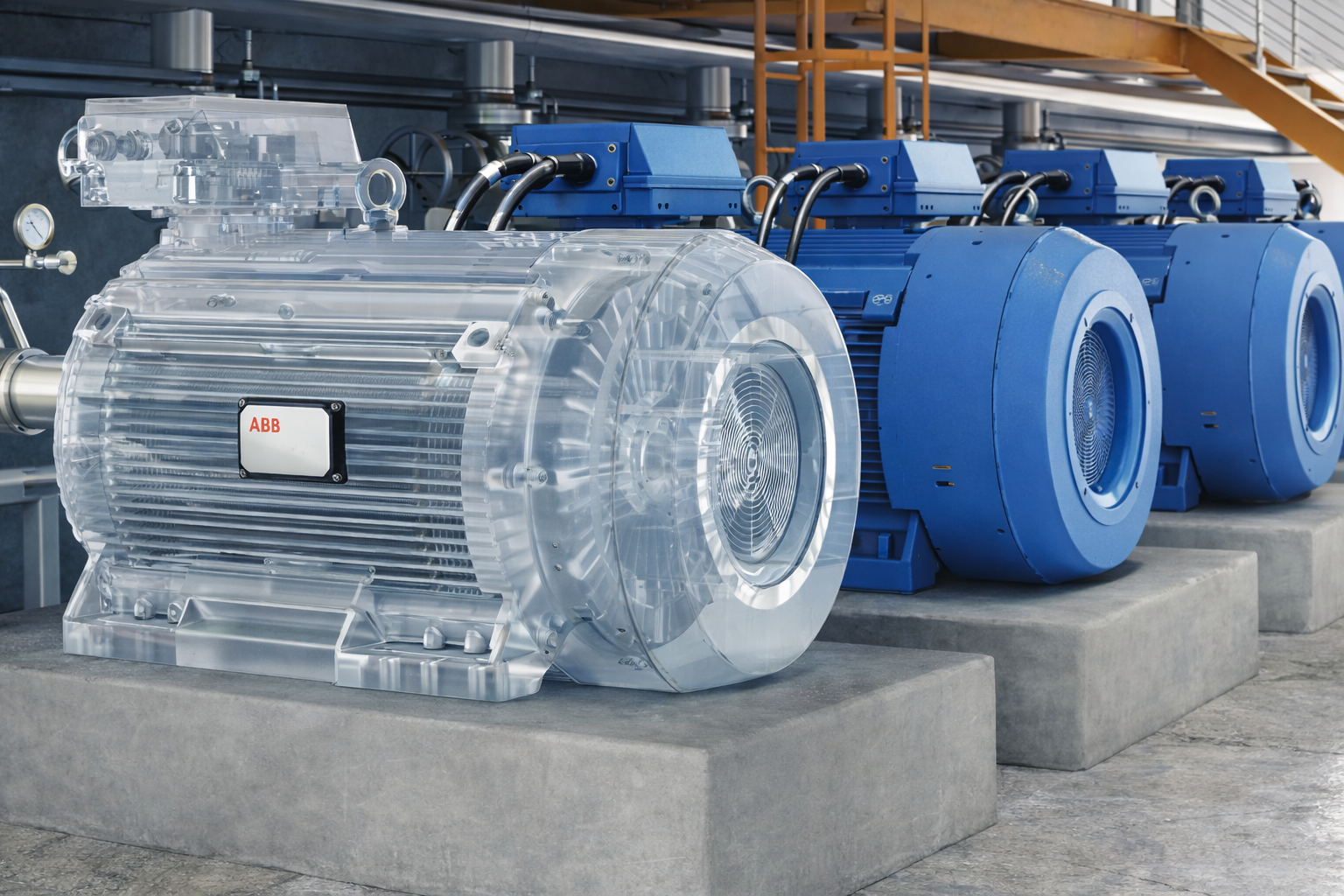

PUMPS IN OIL AND GAS PRODUCTION

(Collection, Handling & Processing Solutions)

Pumping units for the oil and gas industry are specialized systems engineered for the collection, transfer, and treatment of hydrocarbons. Designed for peak performance in harsh environments, these solutions are classified by operating principle to ensure maximum efficiency across the entire production chain.

Key Technologies & Types

  • Dynamic (Centrifugal) Pumps: The optimal choice for low-viscosity fluids, light hydrocarbons, and produced water. They provide high flow rates and stable performance for large-scale transportation.
  • Positive Displacement Pumps (Plunger & Piston): Specifically designed for handling highly viscous fluids and gas-liquid mixtures under extreme pressure. Essential for chemical dosing and well injection processes.
  • Screw Pumps (Multiphase): The modern industrial standard. Due to their exceptional reliability, they are increasingly replacing centrifugal units in handling complex media with high gas content and solid particles.

Zalety techniczne

  • Complex Media Handling: Efficient pumping of high-viscosity oils and emulsions without loss of performance.
  • Heavy-Duty Materials: Use of specialized alloys and protective coatings to prevent abrasive wear and corrosion.
  • Energy Efficiency: Optimized hydraulic components and VFD compatibility to reduce operational power costs.
  • Global Standards: Full compliance with API 610 and API 676 standards, ensuring safety in critical industrial operations.

VALUE PROPOSITION:

Direct Factory Channels

Long-standing relationships with manufacturers allow us to offer optimal pricing and prioritized delivery schedules

Comprehensive Support

We manage the entire transaction cycle, including technical matching, procurement, and complex logistics.

Certified Quality

We supply only verified equipment that complies with international safety and performance standards.
